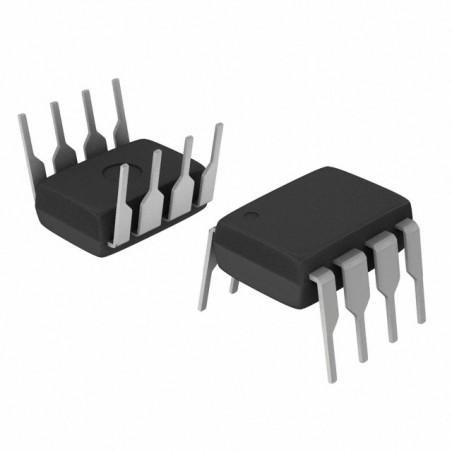

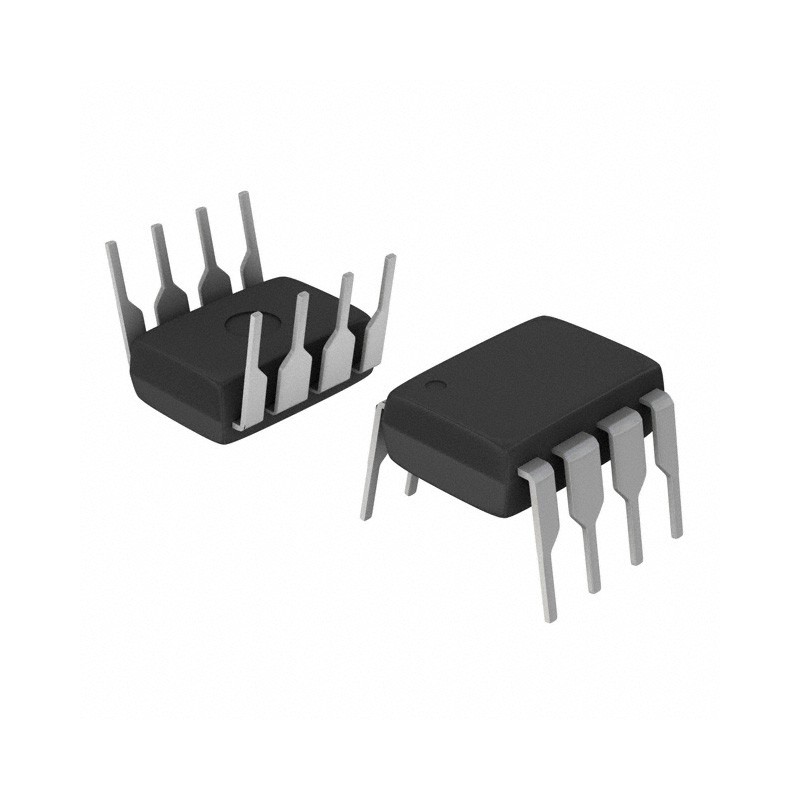

24LC512-I/P 64K I2C EEPROM 400kHz DIL08

4,51 €
Tasse incluse

Italia

Nexive: per ordini inferiori a 24,98 € il costo é 2,50 € - consegna 7 - 15 gg lavorativi

Nexive: per ordini superiori a 24,99 € la spedizione é Gratis - consegna 7 - 15 gg lavorativi

DHL: per ordini inferiori a 24,98 € il costo é 9,90 € - consegna 2 - 3 gg lavorativi

DHL: per ordini compresi tra 24,99 € e 49,98 € il costo é 7,90 € - consegna 2 - 3 gg lavorativi

DHL: per ordini compresi tra 49,99 € e 98,99 € il costo é 5,90 € - consegna 2 - 3 gg lavorativi

DHL: per ordini superiori a 99 € la spedizione é Gratis - consegna 2 - 3 gg lavorativi

Europa

DHL: costo fisso di 15,99 € per il territorio europeo - consegna in 2 - 3 gg lavorativi

Poste Italiane Registered: peso max 250 gr. - il costo varia tra 7,10 € e 12,70 € - consegna in 2 - 4 settimane.

Resto del mondo

DHL: costo fisso di 39,99 € per il resto del mondo - consegna in 2 - 3 gg lavorativi

Poste Italiane Registered: peso max 250 gr. - il costo varia tra 8,40 € e 16,50 € - consegna in 2 - 4 settimane.

Quantità
Disponibile

10.7020.0001

Features:

  • 128-bit through 1024 Kbit Devices
  • Single Supply with Operation Down to 1.7V for 24AAXX Devices
  • Low-Power CMOS Technology:
    - 1 mA active current, typical
    - 1µA standby current, typical (I-temp)
  • 2-Wire Serial Interface Bus, I2C™ Compatible
  • Schmitt Trigger Inputs for Noise Suppression
  • Output Slope Control to Eliminate Ground Bounce
  • 400kHz (= 2.5V): 24LCXX and 24AAXX
  • 1 MHz (= 2.5V) and 400 kHz (1.7V): 24FCXX
  • Self-Timed Write Cycle (including Auto-Erase)
  • Page Write Buffer
  • Hardware Write-Protect Available on Most Devices
  • Factory Programming (QTP) Available
  • ESD Protection >4,000V
  • 1 Million Erase/Write Cycles
  • Data Retention >200 years
  • 8-lead PDIP, SOIC, TSSOP and MSOP Packages
  • 5-lead SOT-23 Package (Most 1-16 Kbit Devices)
  • 8-lead 2x3mm and 5x6mm DFN Packages Available
  • Pb-Free and RoHS Compliant
  • Available for Extended Temperature Ranges:
    - Industrial (I): -40°C to +85°C
    - Automotive (E): -40°C to +125°C

Description:

The Microchip Technology Inc. 24CXX, 24LCXX, 24AAXX and 24FCXX (24XX*)devices are a family of 128-bit through 1024 Kbit Electrically ErasedPROMs.
The devices are organized in blocks of x8-bit memory with 2-wire serialinterfaces.
Low-voltage design permits operation down to 1.7V (for 24AAXX devices),with standby and active currents of only 1 µA and 1 mA, respectively.
Devices 1 Kbit and larger have page write capability.
Parts having functional address lines allow connection of up to 8devices on the same bus.
The 24XX family is available in the standard 8-pin PDIP, surface mountSOIC, TSSOP and MSOP packages.
Most 128-bit through 16 Kbit devices are also available in the 5-leadSOT-23 package.
DFN packages (2x3mm or 5x6mm) are also available.
All packages are Pb-free (Matte Tin) finish.
n.d.
10.7020.0001
