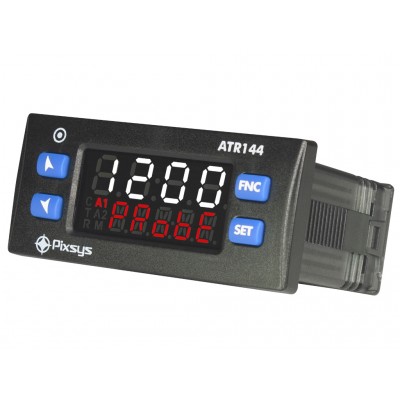

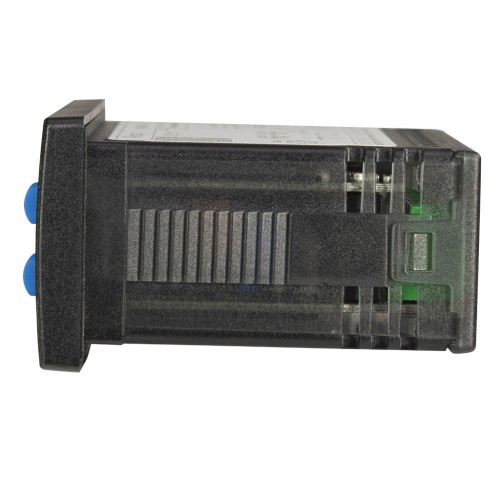

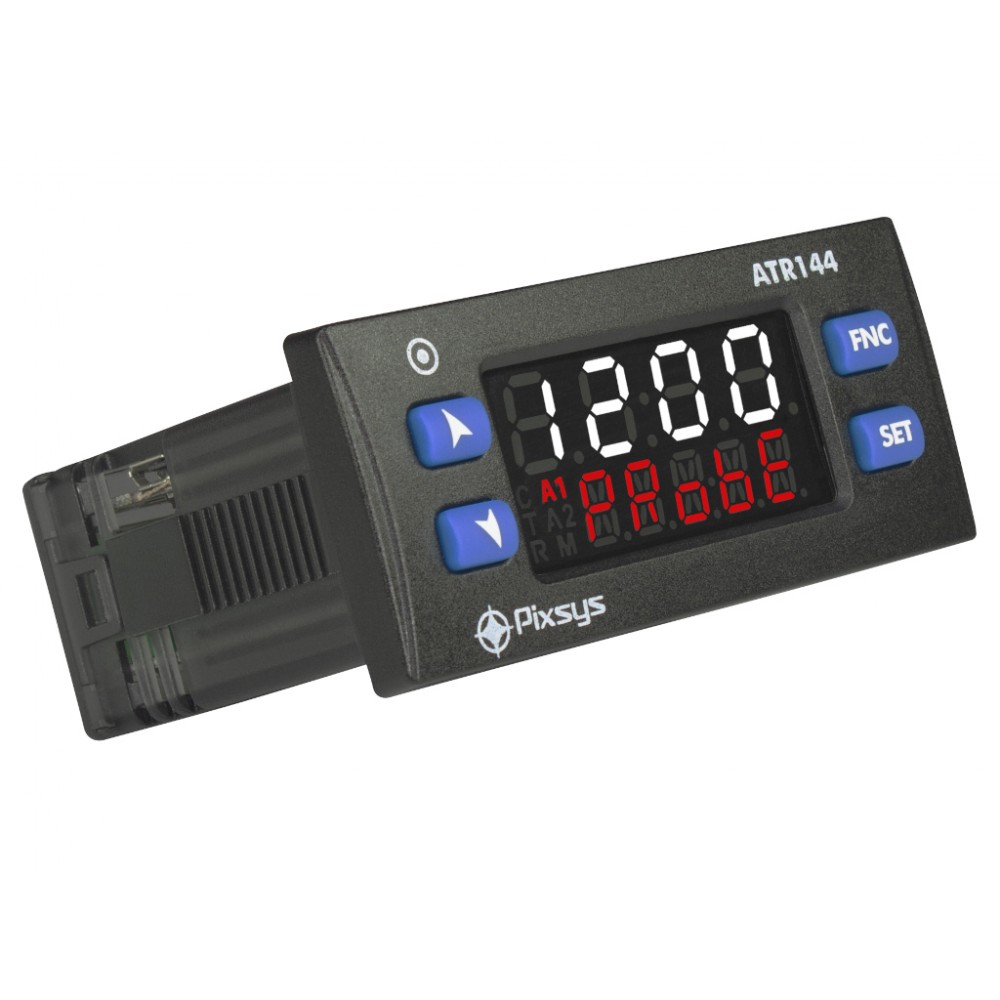

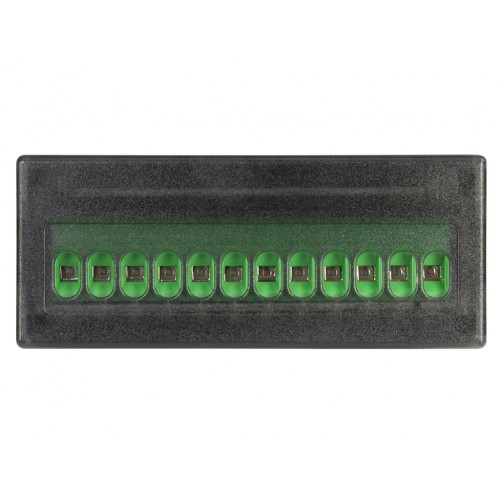

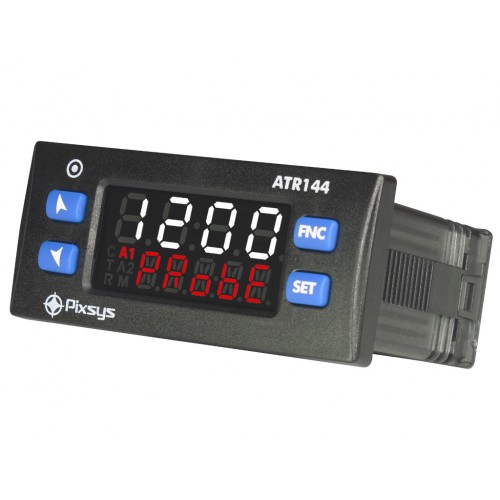

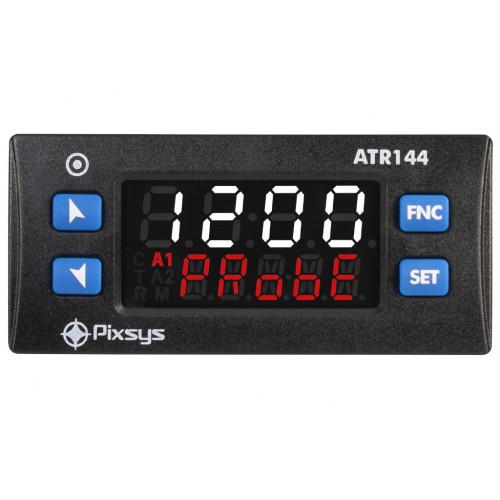

ATR144-ABC-T - RS485 Modbus RTU - 1 analogue input + 2 relays 5 A + 1 D.I/O - Supply 24..230 V AC/DC

Programmable via NFC, control and alarm functions, programmable analogue input, multi-voltage power supply, digital input, serial communication ( ATR144-ABC-T only )

Volume discounts

Quantity Discount You Save
5 3% Up to €15.37
10 5% Up to €51.23
Quantity
Last items in stock

ATR144-ABC-T

Process controller ATR144-ABC-T is latest release of Pixsys controllers size 32x74mm, integrating recent Blue line standards that have been introduced with ATR244. It stands out for bright display, ensuring optimal visibility in industrial environments and making available more information for the operator as well as a scrolling Help function.

ATR144 is programmable by NFC with dedicated App MyPixsys for Android devices (same already in use for Pixsys latest product lines), not requiring wirings and power supply and allowing quick set-up/updates on site.

Multi-voltage power supply 24 to 230V AC/DC with galvanic isolation does not require any hardware selection.

ATR144-ABC-T is equipped with RS485 serial communication option with Modbus RTU/Slave protocol.

User friendly, multimedia support and traceability

For the entire range of Pixsys products is available a technical support for installation, programming and operation via online forum on Pixsys.net website .

The interface of the controller ATR144-ABC-T is user-friendly; operator is also supported by programming tools such as MyPixsys App (for Android devices) and LABSOFTVIEW programming software.

Programming tutorial videos are available on Pixsys Youtube Channel for ATR144-ABC-T. As for the entire range of PIXSYS products, thanks to the QR code, the traceability of the product is guaranteed for its entire life cycle; the information and documentation online can be also be accessed by reading the QR CODE that directs your mobile device to the product's technical specifications and verifies its warranty conditions.

Main features

check Ordering coder for exact device configuration

Enclosure 32 x 74 (front) x 53 mm
Power supply 24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV
Consumption 5 VA
Display 4 digits 0,38" white + 5 digits 0,28" red
Environmental conditions Temperature 0-45 °C, humidity 35..95 RH%
Material Enclosure: PC UL94V2 self-extinguishing. Front: PC UL94V2
Weight approx. 120 g
Sealing Front panel: IP65 (with gasket). Enclosure and terminal block: IP20
Quick set-up options Memory Card, LABSOFTVIEW software, EASY-UP codes
APP / NFC Programming via APP (NFC) for Android devices



Inputs

check Ordering coder for exact device configuration

1 analogue / configurable Resolution 16bit, programmable for thermocouples K, S, R, J, T, N, B (automatic compensation of cold junction) -25..85°C, ±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (β 3435K), process signals 0..10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 KΩ (50000 points)
Sampling time Programmable till 2,1 ms (frequency up to 470 Hz)
1/2 Digital Setpoint change, Hold, Run, Tuning, Start / Stop, configuration lock



Outputs

check Ordering coder for exact device configuration

1/2 Relays 5 A - 250 V AC resistive
1 SSR 12 V DC - 25 mA max
Serial communication RS485 Modbus RTU - Slave (4800..115200 baud) Code "-T"



Software features

Control algorithms ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time-proportioned
Tuning Manual or automatic
Data protection Lock of Command/Alarm Setpoints - Access to parameters by Password
Alarm modes Absolute/ threshold, band, upper/lower deviation, Alarms with optional manual reset and activation delay, Loop Break Alarm.
Dual PID Heating / cooling PID
Soft-Start Rising gradient programmable as Degree / hour or fixed output %
Open/Close logics Motorised valves



PIXSYS
ATR144-ABC-T

Data sheet

Rated operating voltage (V)
24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV
Enclosure
32 x 74 (front) x 53 mm
Consumption
5VA
Configurable Thermocouples
Resolution 16bit, programmable for thermocouples K, S, R, J, T, N, B - automatic compensation of cold junction -25..85°C, ±0,2% F.S. ±1 digit F.S.
Configurable Thermoresistances
PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (β 3435K) - Resolution 16bit
Supported process signals
0..10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 KΩ (50000 points)
Serial communication
RS485 Modbus RTU - Slave (4800..115200 baud)
Available inputs
1 analog input - 1 digital input I/O
Available output
2 Relay 2 A 250 V AC resistive load - 2 SSR driver - 1 analogue output V / mA

Specific References

Grade
01/08/2021

Ottimo prodotto

Il prodotto é ottimo e soprattutto il supporto cliente é tempestivo.

  • 1 out of 1 people found this review useful.
