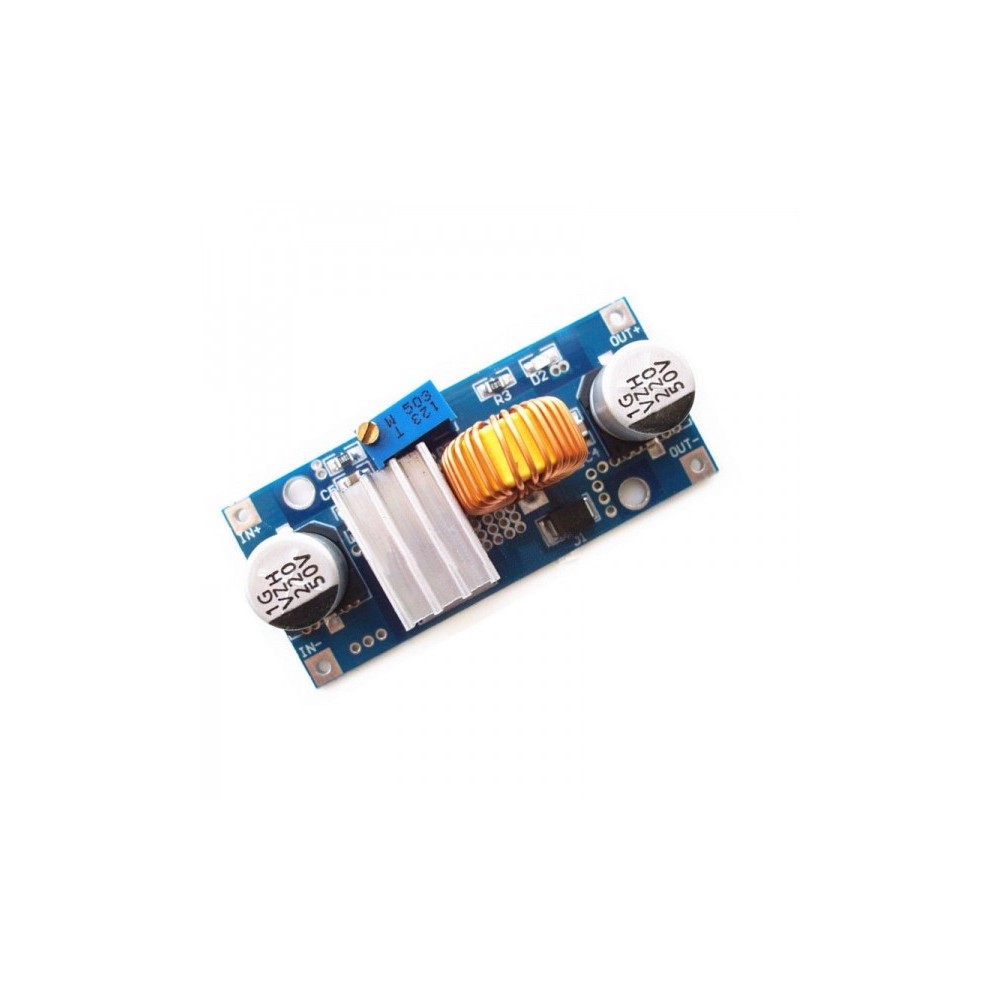

XL4015 DC-DC Step Down 4-38Vin 1,25-36Vout 5A 50W 96% with LED
Italy
Nexive: orders below 24,98 € shipping costs is 2,50 € - shipping times of 7 - 15 working days
Nexive: orders above 24,99 € shipping is FREE - shipping times of 7 - 15 working days
DHL: orders of less than euro 24,98 € shipping costs is 9,90 € - shipping times of 2 - 3 working days
DHL: orders between 24,99 € and 49,98 € shipping costs is 7,90 € - shipping times of 2 - 3 working days
DHL: orders between 49,99 € and 98,99 € shipping costs is 5,90 € - shipping times of 2 - 3 working days
DHL: orders above 99 € shipping is FREE - shipping times of 2 - 3 working days
Europe
DHL: fixed cost of euro 15,99 € for the whole European territory - shipping times of 2 - 3 working days
Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 7,10 € to 12,70 € - shipping times of 2 - 4 weeks.
Rest of the World
DHL: fixed cost of 39,99 € for the rest of the world - shipping times of 2 - 3 working days
Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 8,40 € to 16,50 € - shipping times of 2 - 4 weeks.
Product Description
This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DCmodule,capable of driving a 5A load with high efficiency, low rippleand excellent line and load regulation.
Module highlights: 5A high power high efficiency andlow ripple with power indicator !
Performance parameters
- Input voltage range:4~38VDC (Note:input voltage not exceeding 38V)
- Output voltage range:1.25-36VDC adjustable ( Note: output must be2V less than input voltage )
- Output current: 0-5A
- Output power: 75W ( with heatsink and good airflow )
- High efficiency up to 96%
- Built in thermal shutdown function
- Built in current limit function
- Built in output short protection function
- Input reverse polarity protection: None (if required, highcurrent diode in series with the input).
- L x W x H =5.4*2.3*1.5CM
Application
The DC/DC buck module is ideal in applications where input voltage ishigher than the output voltage, such as LCD Monitor, LCD TV, portableinstrument power supply, telecom/networking equipment, 24V vehicle,industrial equipment buck.Can be used as 12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V, 24Vbuck to 12V, 36V buck to 24V etc.
