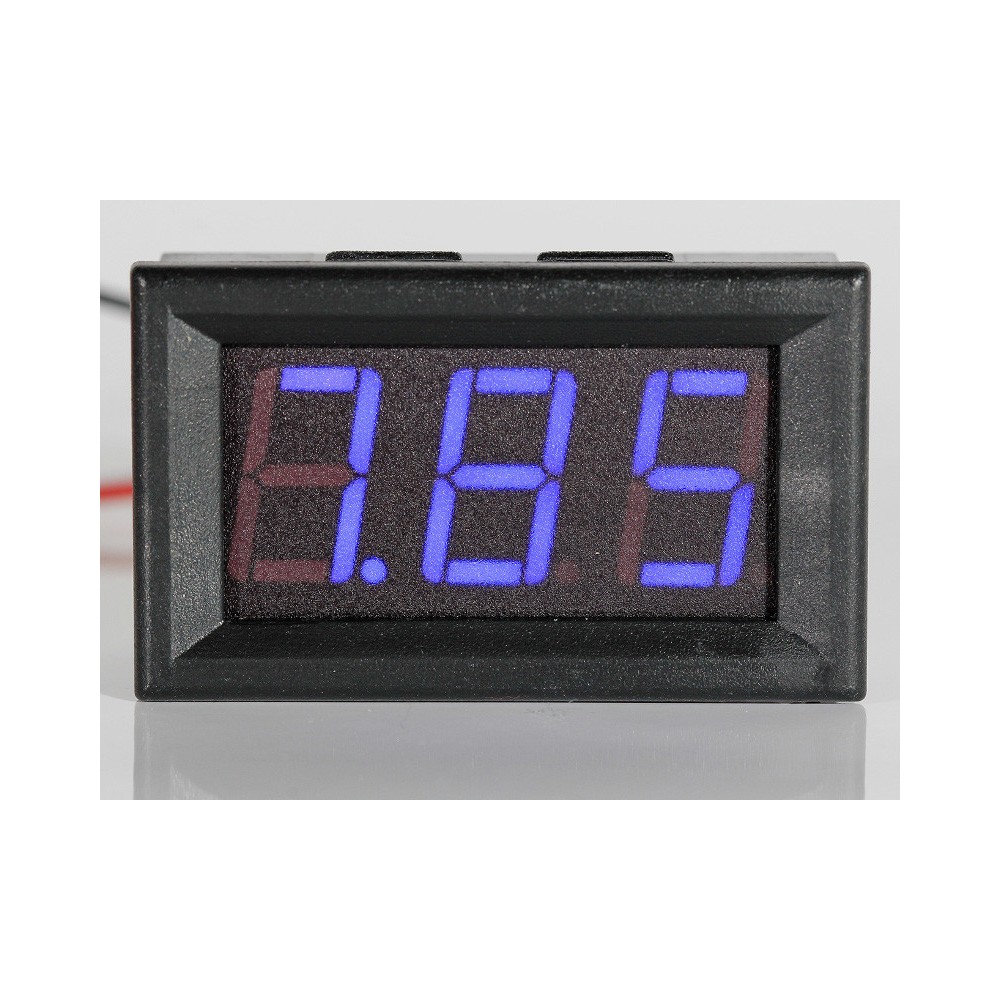

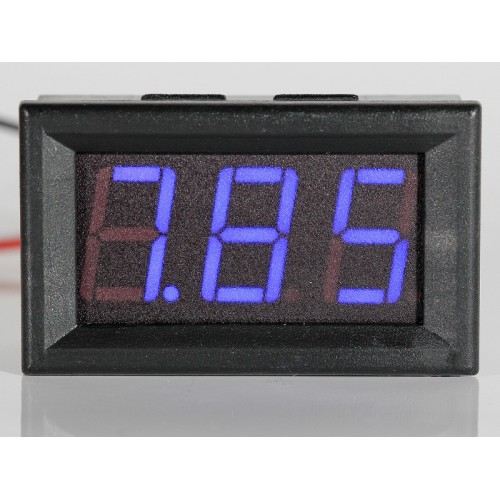

Panel Meter Voltmeter 0,56 inch (14,2mm) LED  0-32V  2 or 3 wire input - BLUE

Quantity
Last items in stock

Add to Wishlist
Add to Compare
Get a quote
Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews


<b>15</b> Buying this product you will collect 20 points with our loyalty program. Your can convert 20 points in your account into a voucher for a future purchase.

10.9032.0011

3 DIGIT PANEL METER WITH BLACK FRAME

Description

  1. LED COLOR: BLUE
  2. Voltage measure range : 0-32Vdc ( 4,7-32vdc in 2 Wire configuration )
  3. Number of digit : 3
  4. Refresh speed : 500ms
  5. Digit Size : 8x14mm
  6. Display Area : 36x18mm
  7. Frame Size : 28.8 x 47.8 mm
  8. Size of hole on panel ( to mount voltmeter ) : 45.3 x 25.8mm
  9. Power supply: DC 4.7V - 32V
  10. Working temperature: -10℃ - 65 ℃

2 or 3 wire setup

Module can be configured as 2 wire or 3 wire as show in this imagebelow.
In 2 wire mode you must connect "VT" an "+" pin with a 0 Ohm resistor.
In 3 wire mode you must use "VT" input as signal and "+" input assupply for logic, "-" is common ground pin.

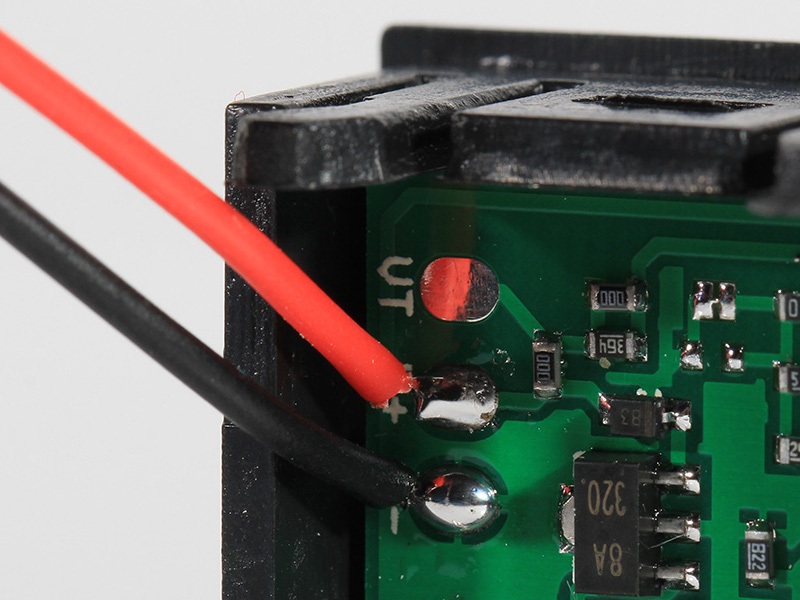

2 wire voltmeter configuration

3 wire voltmeter configuration
