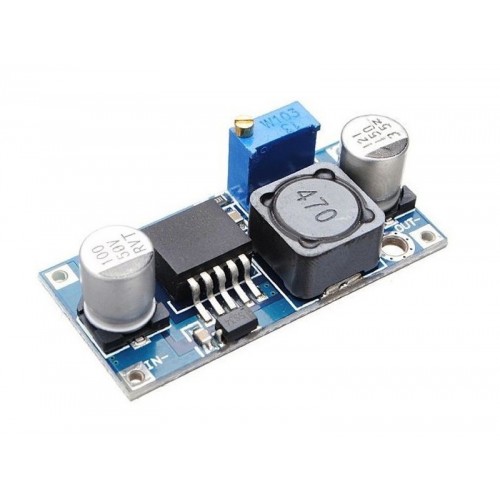

LM2596S-ADJ DC/DC StepDown Supply Module - 4,5 to 40Vin ( 1,25V to 35V Vout)

€2.86
Tax included

Italy

Nexive: orders below 24,98 € shipping costs is 2,50 € - shipping times of 7 - 15 working days

Nexive: orders above 24,99 € shipping is FREE - shipping times of 7 - 15 working days

DHL: orders of less than euro 24,98 € shipping costs is 9,90 € - shipping times of 2 - 3 working days

DHL: orders between 24,99 € and 49,98 € shipping costs is 7,90 € - shipping times of 2 - 3 working days

DHL: orders between 49,99 € and 98,99 € shipping costs is 5,90 € - shipping times of 2 - 3 working days

DHL: orders above 99 € shipping is FREE - shipping times of 2 - 3 working days

Europe

DHL: fixed cost of euro 15,99 € for the whole European territory - shipping times of 2 - 3 working days

Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 7,10 € to 12,70 € - shipping times of 2 - 4 weeks.

Rest of the World

DHL: fixed cost of 39,99 € for the rest of the world - shipping times of 2 - 3 working days

Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 8,40 € to 16,50 € - shipping times of 2 - 4 weeks.

Quantity
In Stock

10.9032.0001



   LM2596HVS-ADJ DC/DC StepDown power supply module ( 45V Version )




This is high performance DC to DC Step Down Adjustable Power Supply Module based on well kwon LM2596HVS Switching Regulator.
This is a Non-Isolated step-down module (buck) with short circuit protection.

   Main feature

  • High Voltage capacitor
  • Output Voltage LED
  • Input voltage range: 4.5V-40V (45V maximum continuous )
  • Output voltage range: 1.23V-35V adjustable by trimmer
  • Output current: rated current 2A, maximum 3A (need to add heat sink if the output power greater than 20W)
  • Conversion efficiency: up to 92% ( see datasheet of LM2596HVS-ADJ for more detail )
  • Switching Frequency: 150KHz
  • Operating temperature: -20°C +85°C
  • Full load temperature rise: 40 ?
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Dimensions: L * W * H 43mm * 21mm * 14mm




10.9032.0001
