10.4560.0010

TECHNICAL DATA – series HL149

  • VDR INTERFERENCE SUPPRESSION ON THE COLLECTOR
  • DIRECTION OF ROTATION DEPENDING ON POLARITY
  • CAN BE MOUNTED IN ANY POSITION
  • MAXIMUM RADIAL SHAFT LOAD: 10N
  • MAXIMUM AXIAL SHAFT LOAD: 5N
  • TEMPERATURE RANGE: -20 °C/60 °C
  • APPROX WEIGHT: 100G

Typical values at ambient temperature +20%
Tollerance +/-10%

Technical Drawing

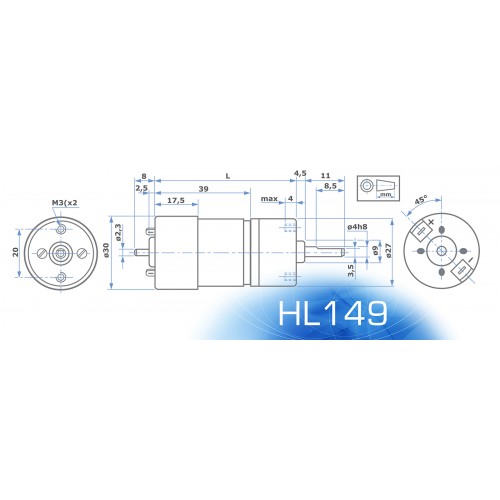

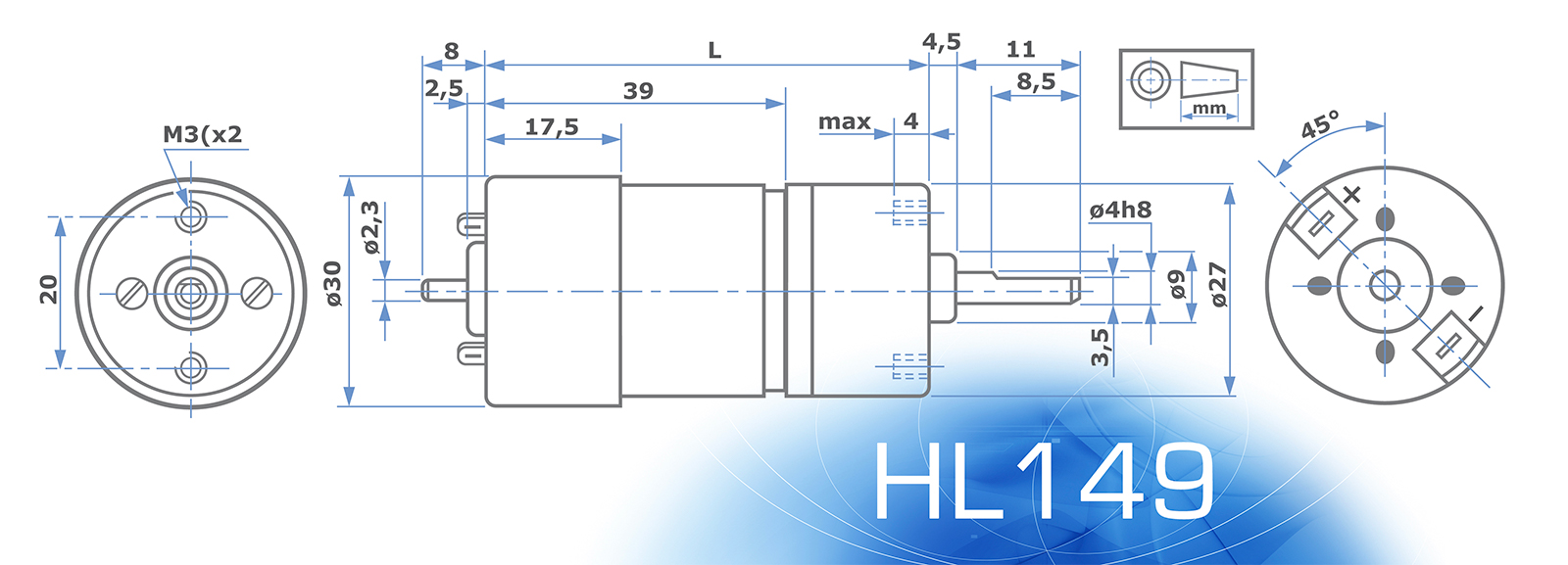

HL149 - Technical Drawing - No Encoder

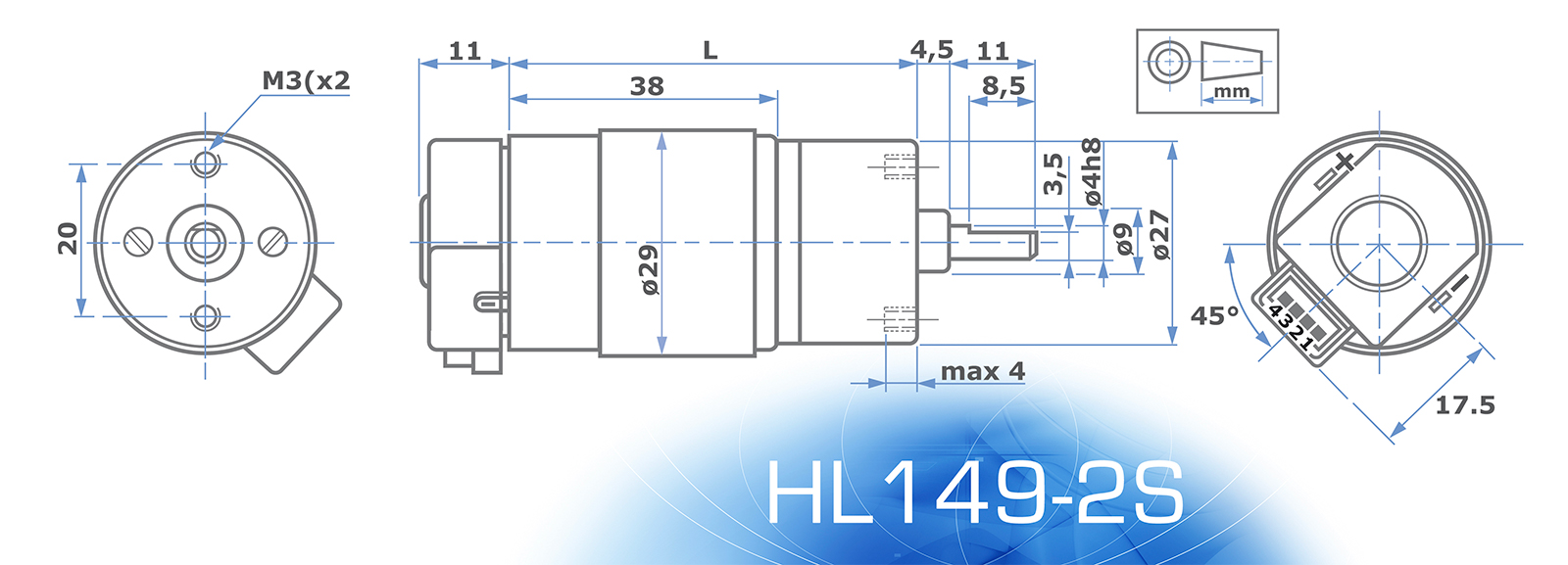

Also available with two-phase Hall-effect 90° encoder – HL149-2S

HL149 - Technical Drawing - Encoder

HL149 Available Models

HL149 Available Models

MicroMotors s.r.l.
10.4560.0010
1 Item

Data sheet

Rated operating voltage (V)
12Vdc
Reduction Ratio (Motor Axis: Reduction Axis)
20,8
Rotation speed at nominal load (rpm)
115
Electric Power (W)
2,4
Nominal torque (Ncm)
7,5
