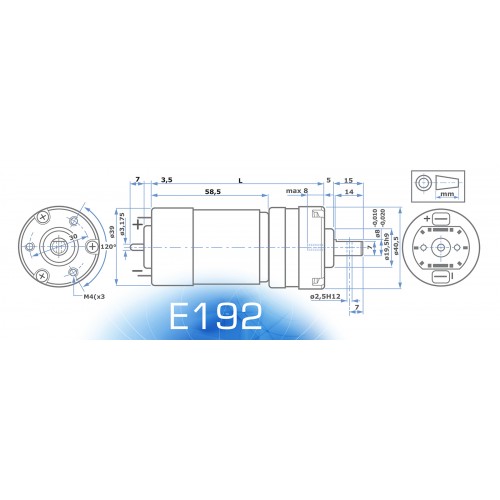

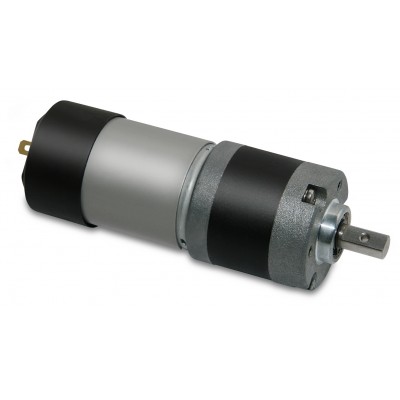

PLANETARY GEAR-MOTOR E192.12.25 WOC 12Vdc 90Ncm 160pm 21W
TECHNICAL DATA – series E192
- PLANETARY GEAR-MOTOR
- MOTOR INTERFERENCE SUPPRESSION BY VDR AND CAPACITORS
- OUTGOING SHAFT TWO BALL BEARINGS SUPPORTED
- MAXIMUM RADIAL SHAFT LOAD: 200N (10 MM FROM THE FIXING FLANGE)
- MAXIMUM AXIAL SHAFT LOAD: 100N
- DIRECTION OF ROTATION DEPENDING ON POLARITY
- CAN BE MOUNTED IN ANY POSITION
- TEMPERATURE WORKING RANGE: -20 °C/60 °C
- APPROX WEIGHT: 385/480G
- TYPICAL VALUES AT AMBIENT TEMPERATURE +20%
- TOLLERANCE +/-10%
If you want a different motor than the one specified in the title of the advertisement, request a quote using the "ASK FOR A QUOTE" function on the product page, specify the working voltage (12 or 24 Vdc) and the REDUCTION RATIO.
ATTENTION: The motors supplied on specific request of the customer require about 15 days for shipping.
In the case of PWM applications it is possible to request the WOC version without the filter capacitors on the motor brushes.

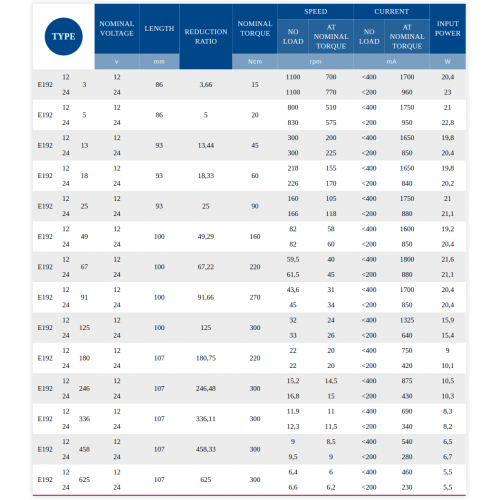

- Rated operating voltage (V)
- Reduction Ratio (Motor Axis: Reduction Axis)
- Rotation speed at nominal load (rpm)
- Electric Power (W)
- Nominal torque (Ncm)
