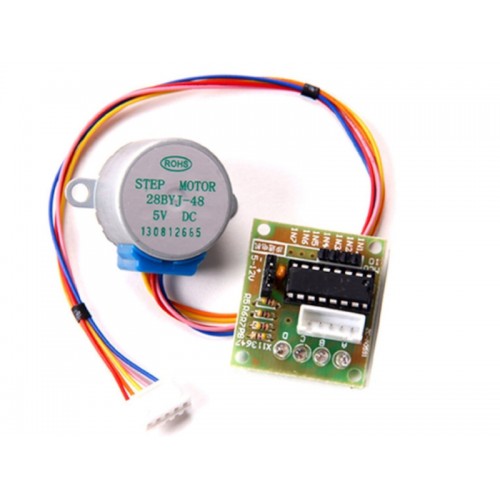

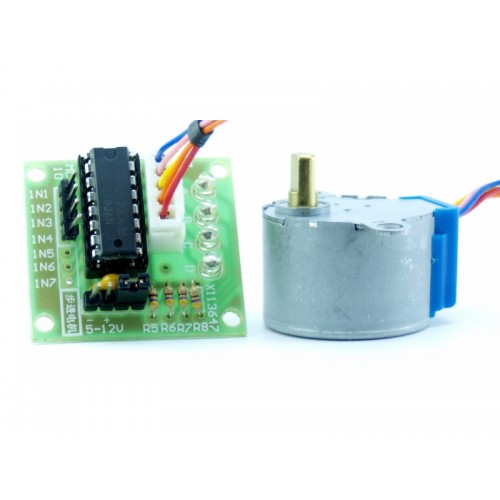

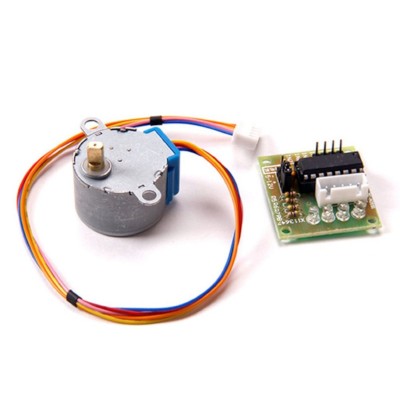

5V 4 Phase 1/64 reduction ratio Stepper motor 28BYJ-48 + ULN2003 Driver for Arduino
5V 4 Phase 1/64 reduction ratio Stepper motor 28BYJ-48 + ULN2003 Driver for Arduino
€4.02
Tax included
Shipped in 4 days
Italy
Nexive: orders below 24,98 € shipping costs is 2,50 € - shipping times of 7 - 15 working days
Nexive: orders above 24,99 € shipping is FREE - shipping times of 7 - 15 working days
DHL: orders of less than euro 24,98 € shipping costs is 9,90 € - shipping times of 2 - 3 working days
DHL: orders between 24,99 € and 49,98 € shipping costs is 7,90 € - shipping times of 2 - 3 working days
DHL: orders between 49,99 € and 98,99 € shipping costs is 5,90 € - shipping times of 2 - 3 working days
DHL: orders above 99 € shipping is FREE - shipping times of 2 - 3 working days
Europe
DHL: fixed cost of euro 15,99 € for the whole European territory - shipping times of 2 - 3 working days
Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 7,10 € to 12,70 € - shipping times of 2 - 4 weeks.
Rest of the World
DHL: fixed cost of 39,99 € for the rest of the world - shipping times of 2 - 3 working days
Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 8,40 € to 16,50 € - shipping times of 2 - 4 weeks.
5V 4 Phase 1/64 reduction ratio Stepper motor 28BYJ-48 + ULN2003 Driver for Arduino
Total Rating
Buying this product you will collect 20 points with our loyalty program. Your can convert 20 points in your account into a voucher for a future purchase.
Parameters
Pin Configuration of 28BYJ-48
|
No: |
Pin Name |
Wire Color |
Description |
|
1 |
Coil 1 |
Orange |
This Motor has a total of four coils. One end of all the coils are connect to +5V (red) wire and the other end of each coil is pulled out as wire colors Orange, Pink, Yellow and Blue respectively |
|
2 |
Coil 2 |
Pink |
|
|
3 |
Coil 3 |
Yellow |
|
|
4 |
Coil 4 |
Blue |
|
|
5 |
+5V |
Red |
We should supply +5V to this wire, this voltage will appear across the coil that is grounded. |

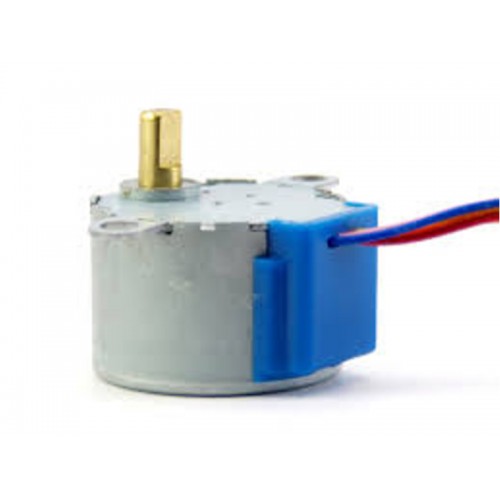

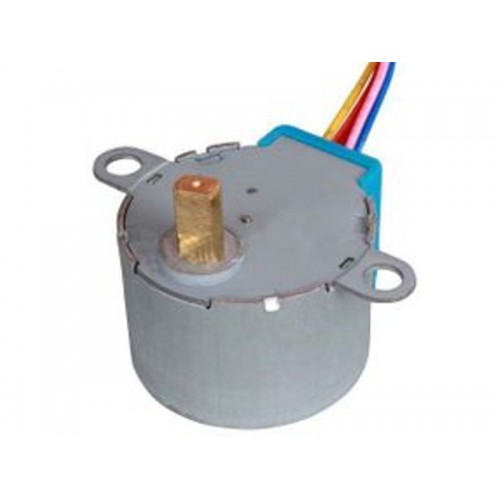

28BYJ-48 Stepper Motor Technical Specifications
- Model : 28BYJ-48
- Rated voltage : 5VDC
- Number of Phase : 4
- Speed Variation Ratio : 1/64
- Stride Angle : 5.625° /64
- Frequency : 100Hz
- DC resistance : 50O±7%(25?)
- Idle In-traction Frequency : > 600Hz
- Idle Out-traction Frequency : > 1000Hz
- In-traction Torque >34.3mN.m(120Hz)
- Self-positioning Torque >34.3mN.m
- Friction torque : 600-1200 gf.cm
- Pull in torque : 300 gf.cm
- Insulated resistance >10MO(500V)
- Insulated electricity power :600VAC/1mA/1s
- Insulation grade :A
- Rise in Temperature <40K(120Hz)
- Noise <35dB(120Hz,No load,10cm)
Note: The 28BYJ48 stepper motor datasheet can be found at the bottom of the page
Where to use 28-BYJ48 Stepper Motor
The most commonly used stepper motor is the 28-BYJ48 Stepper Motors. You can find this (or similar) motors in your DVD drives, Motion camera and many more place. The motor has a 4 coil unipolar arrangement and each coil is rated for +5V hence it is relatively easy to control with any basic microcontrollers. These motors has a stride angle of 5.625°/64, this means that the motor will have to make 64 steps to complete one rotation and for every step it will cover a 5.625° hence the level of control is also high. However, these motors run only on 5V and hence cannot provide high torque, for high torque application you should consider the Nema17 motors. So if you are looking for a compact easy to use stepper motor with decent torque then this motor is the right choice for you.
Stepper Motor Applications
- CNC machines
- Precise control machines
- Security cameras
- DVD Players
- Car side mirror tilt
10.4562.0003
23 Items
Data sheet
- Rated operating voltage (V)
- 5Vdc
- Reduction Ratio (Motor Axis: Reduction Axis)
- 1
- Nominal torque (Ncm)
- 0,343
