Arduino Micro ATmega32u4 ( Compatible )

€10.57
Tax included

Italy

Nexive: orders below 24,98 € shipping costs is 2,50 € - shipping times of 7 - 15 working days

Nexive: orders above 24,99 € shipping is FREE - shipping times of 7 - 15 working days

DHL: orders of less than euro 24,98 € shipping costs is 9,90 € - shipping times of 2 - 3 working days

DHL: orders between 24,99 € and 49,98 € shipping costs is 7,90 € - shipping times of 2 - 3 working days

DHL: orders between 49,99 € and 98,99 € shipping costs is 5,90 € - shipping times of 2 - 3 working days

DHL: orders above 99 € shipping is FREE - shipping times of 2 - 3 working days

Europe

DHL: fixed cost of euro 15,99 € for the whole European territory - shipping times of 2 - 3 working days

Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 7,10 € to 12,70 € - shipping times of 2 - 4 weeks.

Rest of the World

DHL: fixed cost of 39,99 € for the rest of the world - shipping times of 2 - 3 working days

Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 8,40 € to 16,50 € - shipping times of 2 - 4 weeks.

Quantity
In Stock

10.9033.0006
INTRODUCTION

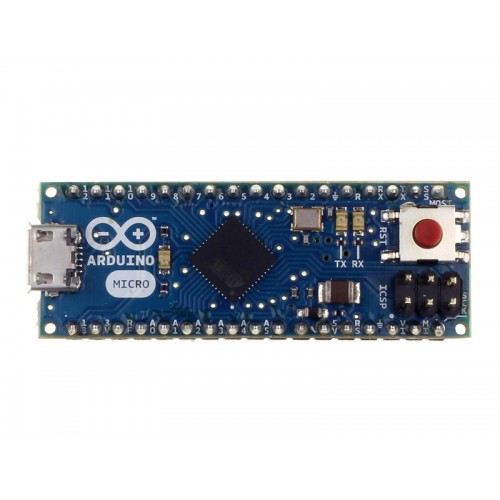

The Arduino Micro is a microcontroller board based on the ATmega32u4.
It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started.
It has a form factor that enables it to be easily placed on a breadboard.

The Micro is similar to the Arduino Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor.
This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
It also has other implications for the behavior of the board; these are detailed on the getting started page.

SPECIFICATION

Microcontroller: ATmega32u4
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 20
PWM Channels: 7
Analog Input Channels: 12
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM: 2.5 KB (ATmega32u4)
EEPROM: 1 KB (ATmega32u4)
Clock Speed: 16 MHz
