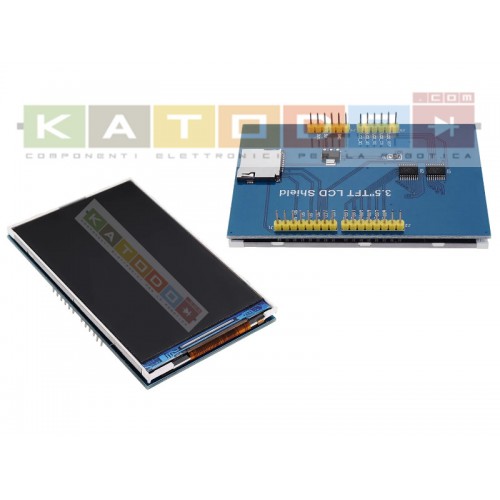

3.5 inch TFT 320x480 65K Color ILI9486 with Touch - MAR3501
3.5 inch TFT 320x480 65K Color ILI9486 with Touch - MAR3501
€13.61
Tax included
Shipped in 4 days
Italy
Nexive: orders below 24,98 € shipping costs is 2,50 € - shipping times of 7 - 15 working days
Nexive: orders above 24,99 € shipping is FREE - shipping times of 7 - 15 working days
DHL: orders of less than euro 24,98 € shipping costs is 9,90 € - shipping times of 2 - 3 working days
DHL: orders between 24,99 € and 49,98 € shipping costs is 7,90 € - shipping times of 2 - 3 working days
DHL: orders between 49,99 € and 98,99 € shipping costs is 5,90 € - shipping times of 2 - 3 working days
DHL: orders above 99 € shipping is FREE - shipping times of 2 - 3 working days
Europe
DHL: fixed cost of euro 15,99 € for the whole European territory - shipping times of 2 - 3 working days
Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 7,10 € to 12,70 € - shipping times of 2 - 4 weeks.
Rest of the World
DHL: fixed cost of 39,99 € for the rest of the world - shipping times of 2 - 3 working days
Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 8,40 € to 16,50 € - shipping times of 2 - 4 weeks.
3.5 inch TFT 320x480 65K Color ILI9486 with Touch - MAR3501
Total Rating
Buying this product you will collect 20 points with our loyalty program. Your can convert 20 points in your account into a voucher for a future purchase.
Check lcdwiki for detailed information about TFT use
Product Description
- Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
- 480X320 resolution, clear display, support for touch function
- Support 16-bit RGB 65K color display, display rich colors
- 8-bit parallel bus, faster than serial SPI refresh
- On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
- Easy to expand the experiment with SD card slot
- Provides an Arduino library with a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Product Parameters
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | MAR3501(have touch screen)/MAR3502(have no touch screen) |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9486 |
| Resolution | 480*320 (Pixel) |
| Module Interface | 8-bit parallel interface |
| Active Area | 73.44*48.96(mm) |
| Module PCB Size | 85.49*55.63(mm) |
| Operating Temperature | -20?~70? |
| Storage Temperature | -40?~70? |
| Operating Voltage | 5V/3.3V |
| Power Consumption | TBD |
| Product Weight(Package containing) | 44g(have touch screen),55g(have no touch screen) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | LCD_RST | LCD bus reset signal, low level reset |
| 2 | LCD_CS | LCD bus chip select signal, low level enable |
| 3 | LCD_RS | LCD bus command / data selection signal,
low level: command, high level: data |
| 4 | LCD_WR | LCD bus write signal |
| 5 | LCD_RD | LCD bus read signal |
| 6 | GND | Power ground |
| 7 | 5V | 5V power input |
| 8 | 3V3 | 3.3V power input, this pin can be disconnected |
| 9 | LCD_D0 | LCD 8-bit data Bit0 |
| 10 | LCD_D1 | LCD 8-bit data Bit1 |
| 11 | LCD_D2 | LCD 8-bit data Bit2 |
| 12 | LCD_D3 | LCD 8-bit data Bit3 |
| 13 | LCD_D4 | LCD 8-bit data Bit4 |
| 14 | LCD_D5 | LCD 8-bit data Bit5 |
| 15 | LCD_D6 | LCD 8-bit data Bit6 |
| 16 | LCD_D7 | LCD 8-bit data Bit7 |
| 17 | SD_SS | SD card SPI bus chip select signal, low level enable |
| 18 | SD_DI | SD card SPI bus MOSI signal |
| 19 | SD_DO | SD card SPI bus MISO signal |
| 20 | SD_SCK | SD card SPI bus clock signal |
