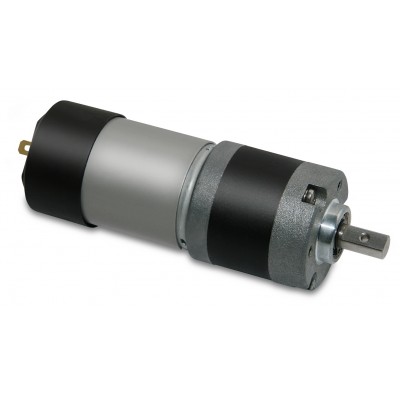

PLANETARY GEAR-MOTOR E192.12.13 WOC 12Vdc 45Ncm 300pm 20W

Motoriduttore E192.12.13 WOC 12Vdc 45Ncm 300pm 20W

€37.70
Tax included

Italy

Nexive: orders below 24,98 € shipping costs is 2,50 € - shipping times of 7 - 15 working days

Nexive: orders above 24,99 € shipping is FREE - shipping times of 7 - 15 working days

DHL: orders of less than euro 24,98 € shipping costs is 9,90 € - shipping times of 2 - 3 working days

DHL: orders between 24,99 € and 49,98 € shipping costs is 7,90 € - shipping times of 2 - 3 working days

DHL: orders between 49,99 € and 98,99 € shipping costs is 5,90 € - shipping times of 2 - 3 working days

DHL: orders above 99 € shipping is FREE - shipping times of 2 - 3 working days

Europe

DHL: fixed cost of euro 15,99 € for the whole European territory - shipping times of 2 - 3 working days

Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 7,10 € to 12,70 € - shipping times of 2 - 4 weeks.

Rest of the World

DHL: fixed cost of 39,99 € for the rest of the world - shipping times of 2 - 3 working days

Poste Italiane Registered: 250 gr. max weight limit and the cost varies from 8,40 € to 16,50 € - shipping times of 2 - 4 weeks.

PLANETARY GEAR-MOTOR E192.12.13 WOC 12Vdc 45Ncm 300pm 20W

Quantity
Product available for orders

10.4560.0025

TECHNICAL DATA – series E192

  • PLANETARY GEAR-MOTOR
  • MOTOR INTERFERENCE SUPPRESSION BY VDR AND CAPACITORS
  • OUTGOING SHAFT TWO BALL BEARINGS SUPPORTED
  • MAXIMUM RADIAL SHAFT LOAD: 200N (10 MM FROM THE FIXING FLANGE)
  • MAXIMUM AXIAL SHAFT LOAD: 100N
  • DIRECTION OF ROTATION DEPENDING ON POLARITY
  • CAN BE MOUNTED IN ANY POSITION
  • TEMPERATURE WORKING RANGE: -20 °C/60 °C
  • APPROX WEIGHT: 385/480G
  • TYPICAL VALUES AT AMBIENT TEMPERATURE +20%
  • TOLLERANCE +/-10%

Without Encoder

E192 Motor without ENCODER

With Encoder

E192 Motor with ENCODER



If you want a different motor than the one specified in the title of the advertisement, request a quote using the "ASK FOR A QUOTE" function on the product page, specify the working voltage (12 or 24 Vdc) and the REDUCTION RATIO.

ATTENTION: The motors supplied on specific request of the customer require about 15 days for shipping.

In the case of PWM applications it is possible to request the WOC version without the filter capacitors on the motor brushes.

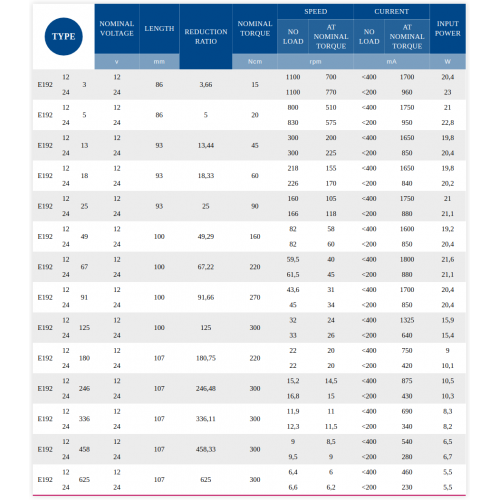

DATASHEET E192

10.4560.0025

Data sheet

Rated operating voltage (V)
12Vdc
Reduction Ratio (Motor Axis: Reduction Axis)
13,44:1
Rotation speed at nominal load (rpm)
200
Electric Power (W)
19,8
Nominal torque (Ncm)
45
